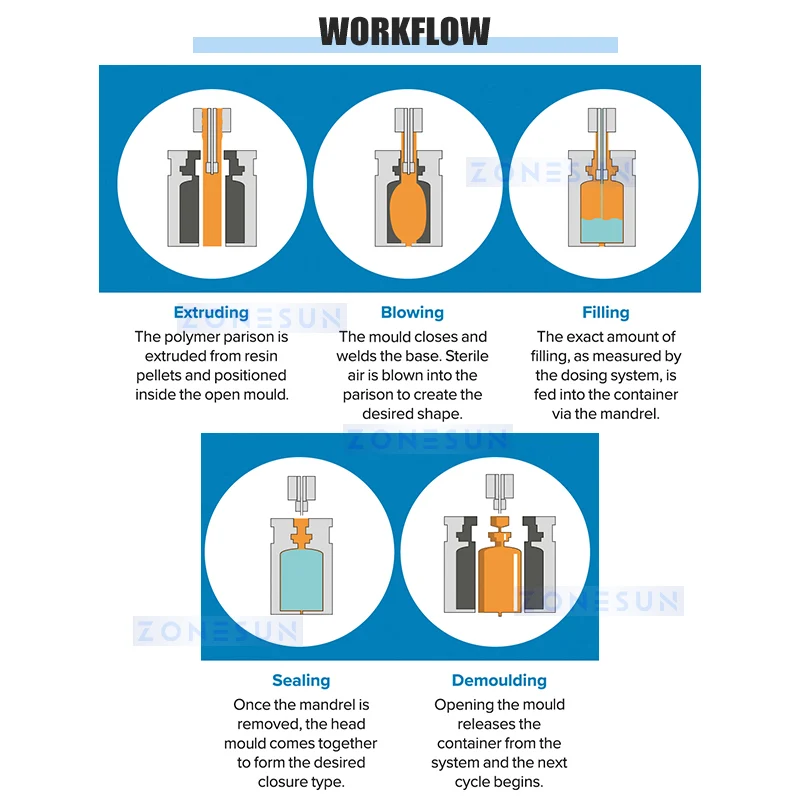

The ZONESUN ZS-BFS1 Blow Fill Seal Machine is a cutting-edge solution for aseptic primary packaging of liquid pharmaceuticals. Designed to meet cGMP standards, it integrates blow molding, filling, and sealing into a single sterile process. With support for PP, PE, and PET materials and filling volumes from 0.2ml to 20ml, this system delivers up to 6000 bottles per hour with ±1.5% accuracy. Its dual-chamber structure (dark side/white side), external deflasher, and compliance with IEC60204-1 and GB/T 4728 electrical standards make it ideal for injectable, ophthalmic, and oral liquid production.
Parameter
- Model: ZS-BFS1
- Size (L×W×H): 4980×2660×2800mm
- Weight: 9T
- Deflasher: Outside
- Power source: 3P/AC380V/50Hz
- Installed power: 75KW
- Power rating: 45KW
- Machine structure: Dark side / white side separation
- Packing materials: PP / PE / PET
- Specification: 0.2–5ml, 5–10–20ml
- Capacity (bottles/hour):
- 0.2–5ml: 900pcs
- 5–10–20ml: 6000pcs
- Filling accuracy: ±1.5% for pure water (5ml)
- Manufacturing standard: cGMP
- Electrical standard:
- IEC60204-1 (Safety of machinery – Electrical equipment)
- GB/T 4728 (Graphical symbols for electrical diagrams)
- Compressed air: No oil, no water @ 8bar, 30NL/min
- Cooling water: 12°C (pure water) @ 4bar, 3m³/h
- Pure steam: 125°C @ 2bar, 40kg/h
