DESCRIPTION

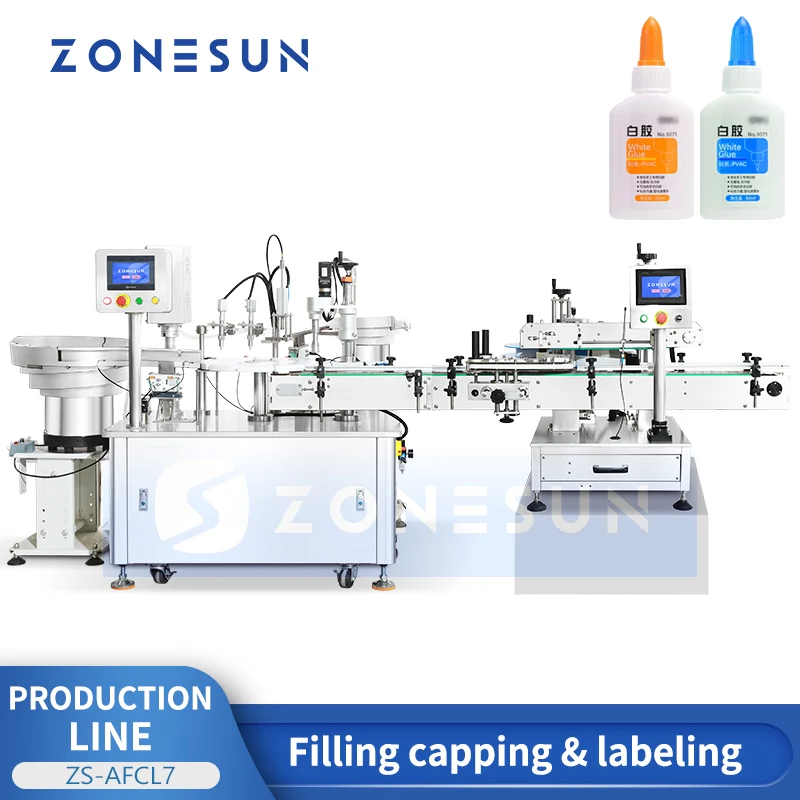

The ZONESUN ZS-AFCL7 is a fully automatic production line that integrates filling, capping, and labeling into one streamlined system. Specially designed for glue bottles with pointed caps and single-sided flat labeling, it offers a complete packaging solution for industries such as cosmetics, beverages, and daily chemicals. With intuitive controls and modular components, it ensures smooth operation, high efficiency, and consistent performance. Ideal for manufacturers seeking to automate their workflow while maintaining product quality and packaging precision.

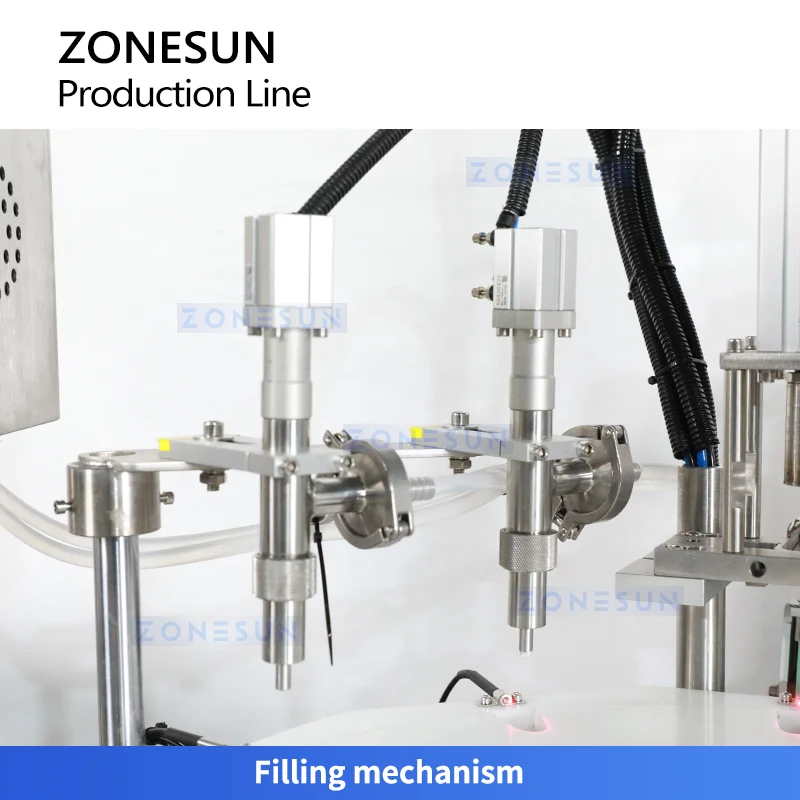

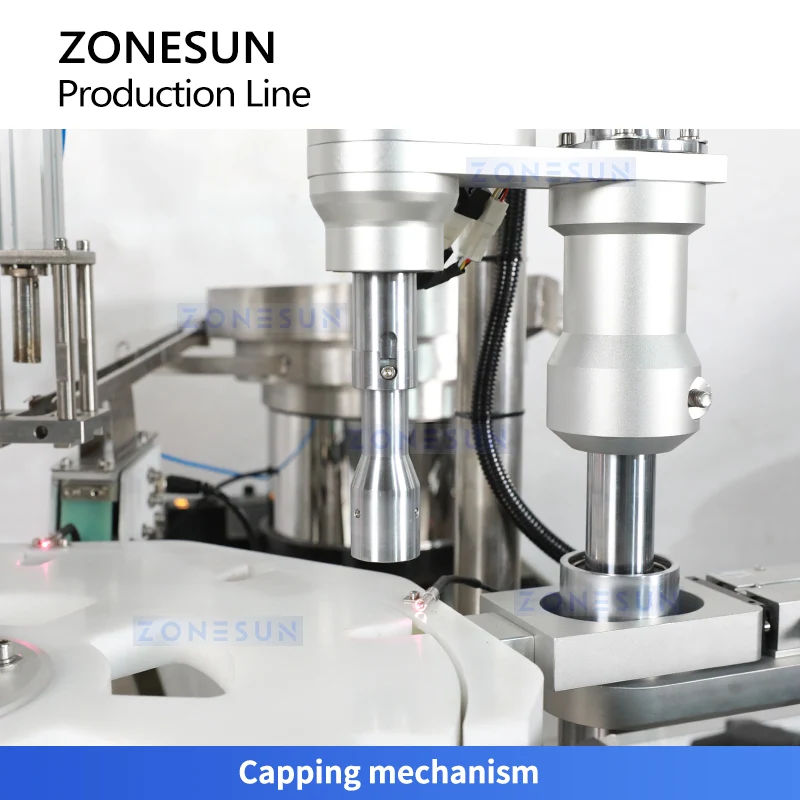

Filling & Capping Machine
- Model: ZS-AFC32Z
- Total Power: About 1.8KW
- Production Capacity: 20–30 bottles/minute
- Working Air Pressure: 0.4–0.6 MPa
- Filling Range: 10–100 ml
- Peristaltic Pump Flow Rate: 3.5 L/min
Labeling Machine
- Model: ZS-TB300I
- Machine Power: 110V/220V, 50–60Hz, 3100W
- Labeling Capacity: 30–100 bottles/hour
- Labeling Accuracy: ±0.5 mm
- Suitable Bottle Size: Diameter ≤100 mm, Height ≤350 mm
- Suitable Label Size: Width <200 mm (Customizable)
- Roll Inner Diameter: About 75 mm
- Roll Outer Diameter: About 250 mm
- Air Pressure: 0.6–0.8 MPa
- Conveyor Size: About 1800 × 100 mm
