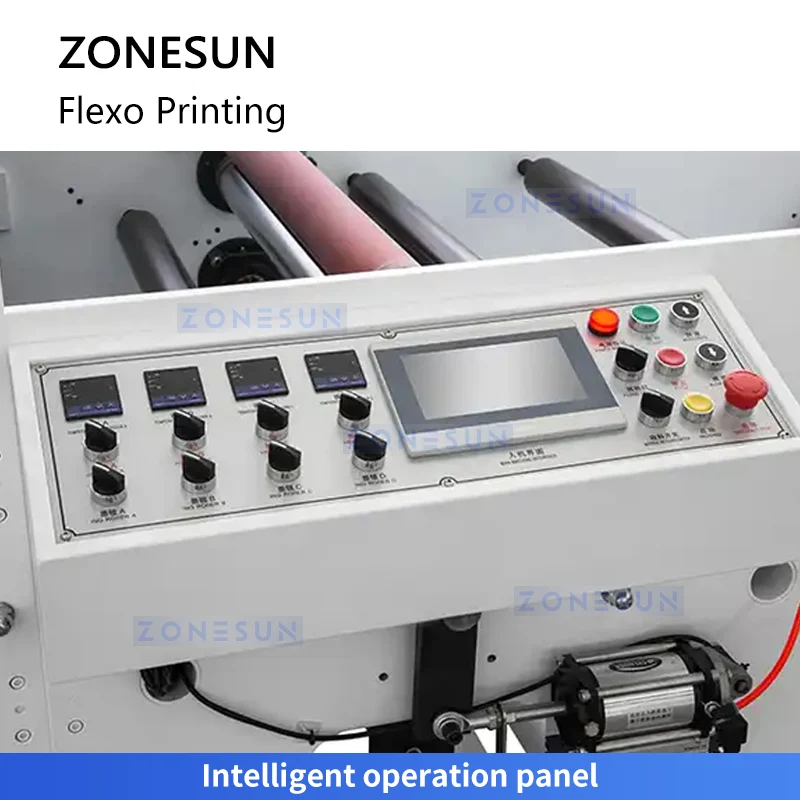

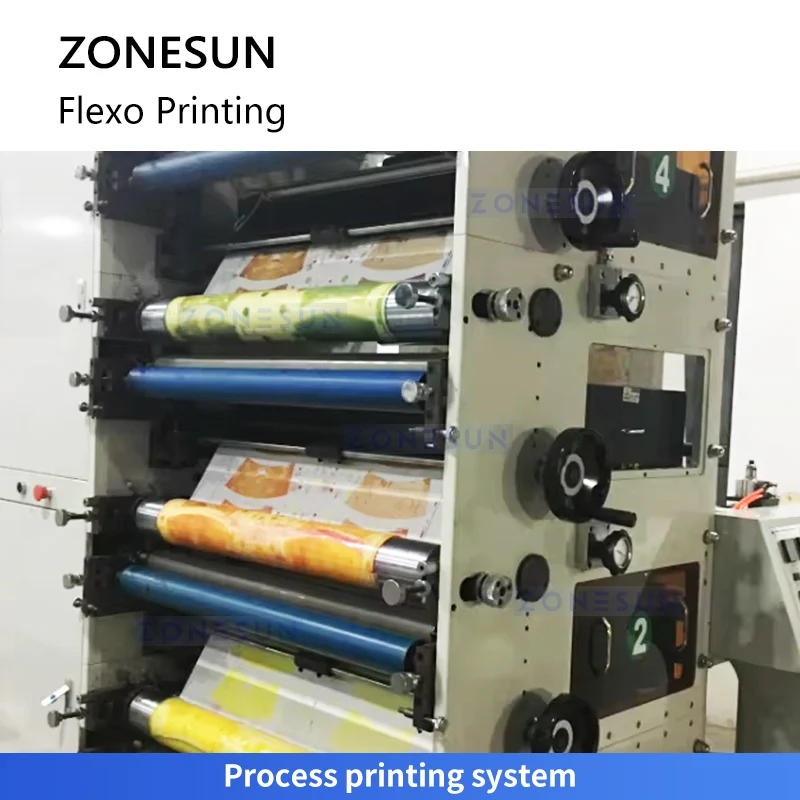

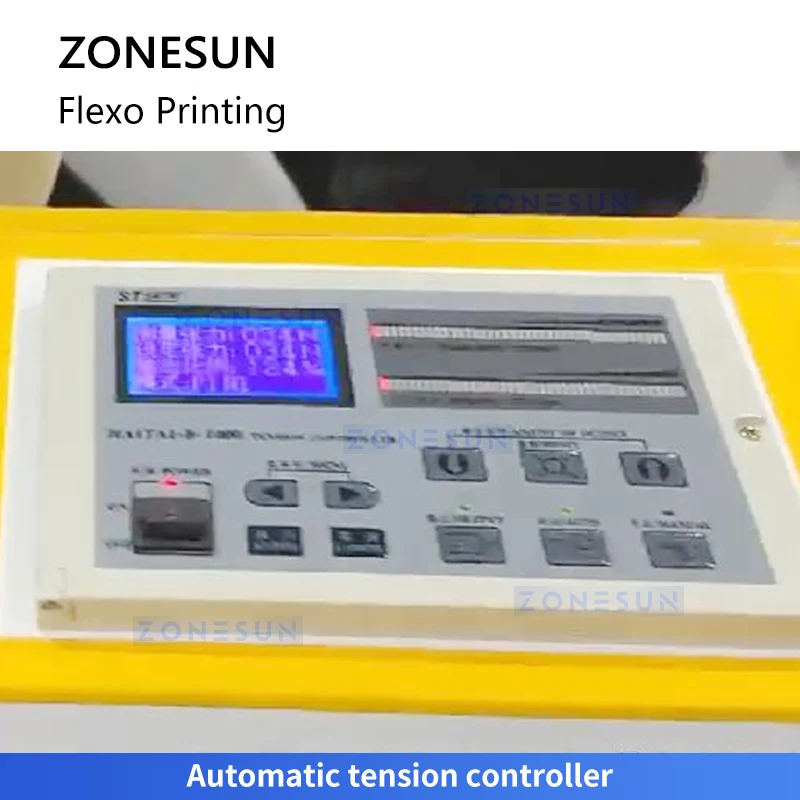

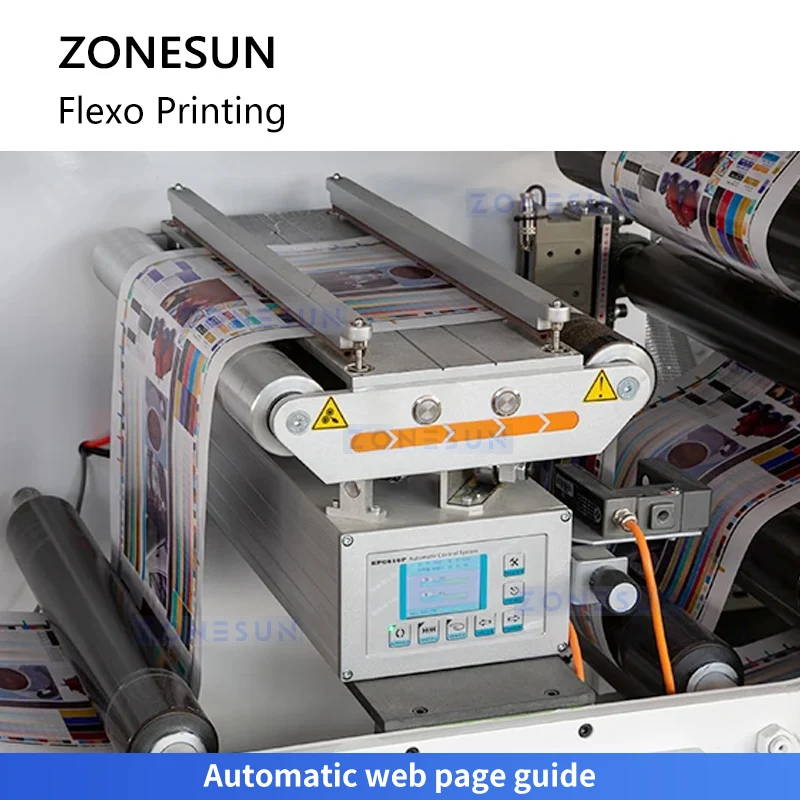

The ZONESUN ZS-RY4 is a high-performance 4-color flexographic printing machine engineered for seamless, multi-stage production. It integrates printing, polishing, infrared drying, laminating, die-cutting, and winding into one streamlined process using a drum paper feeding system. Ideal for cup paper, medical packaging, wine labels, and eco-friendly boxes, it handles various paper types including PE-coated substrates. Advanced features include a microcomputer control interface, servo positioning, centralized oil lubrication, and overload protection—ensuring precise registration, smooth operation, and long-term reliability. Built for speed and quality, it’s the ultimate solution for high-volume printing.
TECHNICAL SPECIFICATIONS
- Model: ZS-RY4
- Voltage: 380V ±10%
- Total Power: 36kW
- Total Air Pressure: 0.6MP
- Printing Speed: 50–60m/min
- Feed Width: 860mm
- Unwinding Diameter: 1300mm
- Rewinding Diameter: 1300mm
- Printing Size: 180–380mm
- Registration Accuracy: ±0.15mm
- Weight: 4500kg
- Dimensions: 4500×1800×2250mm
