Description
The ZONESUN ZS‑PM3spray pasteurization line integrates spray pasteurizing, cooling, and air drying into a continuous process. A chain conveyor moves products through the tank while high‑coverage nozzles ensure uniform heating and reliable microbial reduction. After pre-cooling and final cooling, ambient‑air drying removes surface moisture. By applying the proper temperature and holding time, the system eliminates heat‑sensitive pathogens while preserving product flavor, color, and nutrients. Designed to reduce labor and improve productivity, this line is ideal for pickles, low‑temperature meat products, juices, jelly, yogurt, and a wide range of bottled or packaged beverages.

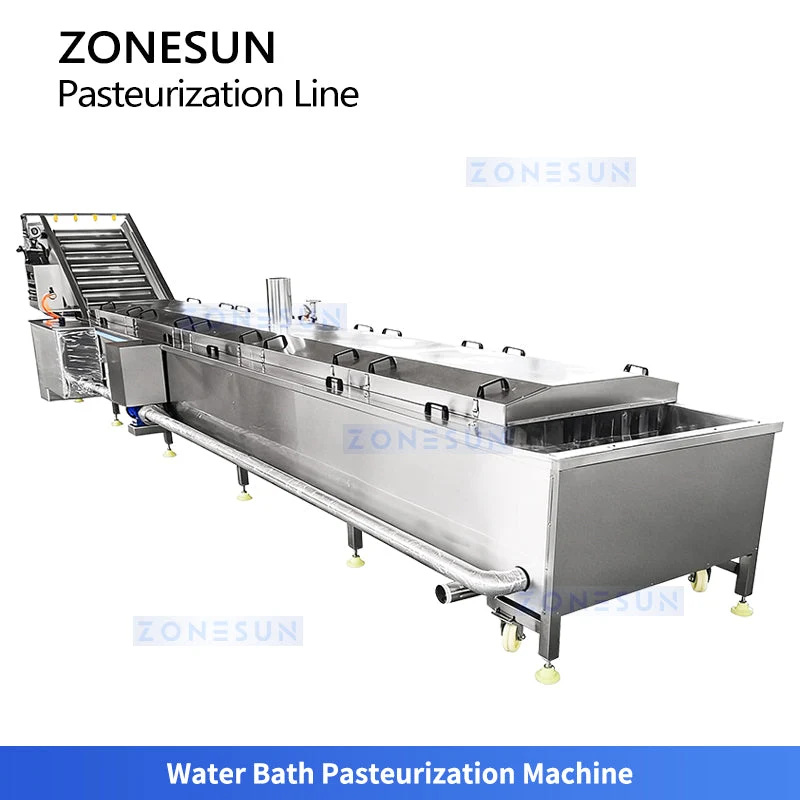

ZS‑PM3A
- Type: Water bath pasteurizer Machine
- Time: 10–40 min
- Temperature: 65–98 °C adjustable
- Stainless Steel Belt Width: 800 mm
- Speed: Frequency‑controlled
- Voltage: 380V / 50Hz (customizable)
- Power: Conveyor motor: 0.75 kW, Circulating water pump: 0.55 kW, Air blower: 0.75kW
- Steam Pressure: 0.3 MPa
- Capacity: 1000–3000 kg/h
- Size: 3000 × 1450 × 1300 mm (customizable)

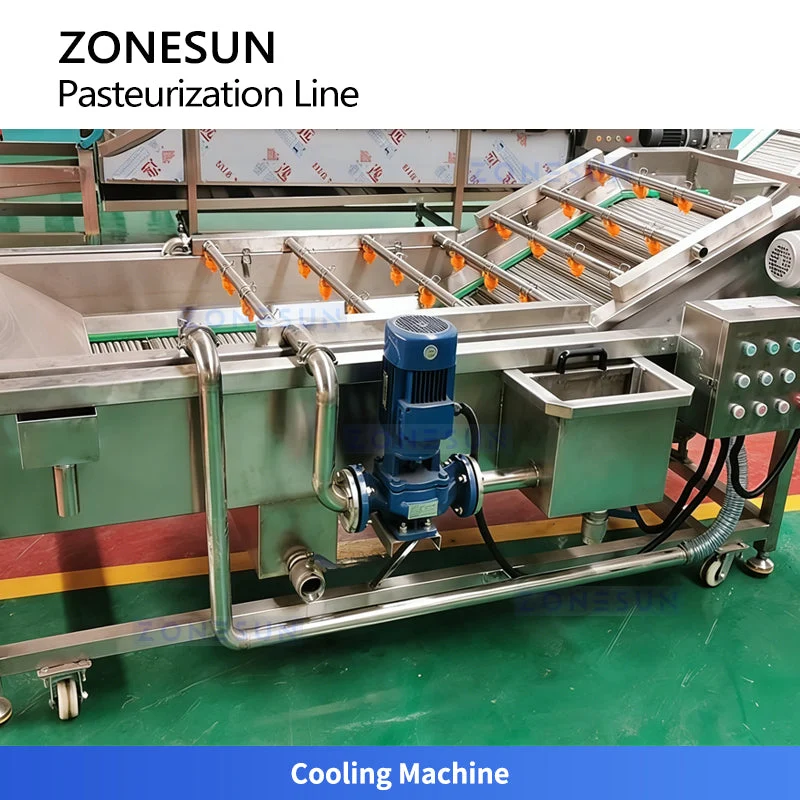

ZS‑PM3B
- Type: Cooling machine
- Belt Speed: Adjustable (fast/slow)
- Material: Stainless steel
- Voltage: 380V / 50Hz
- Transmission Power: 0.37 kW
- Water Pump Power: 1.1 kW
- Machine Size: 3000 × 1500 × 1300 mm

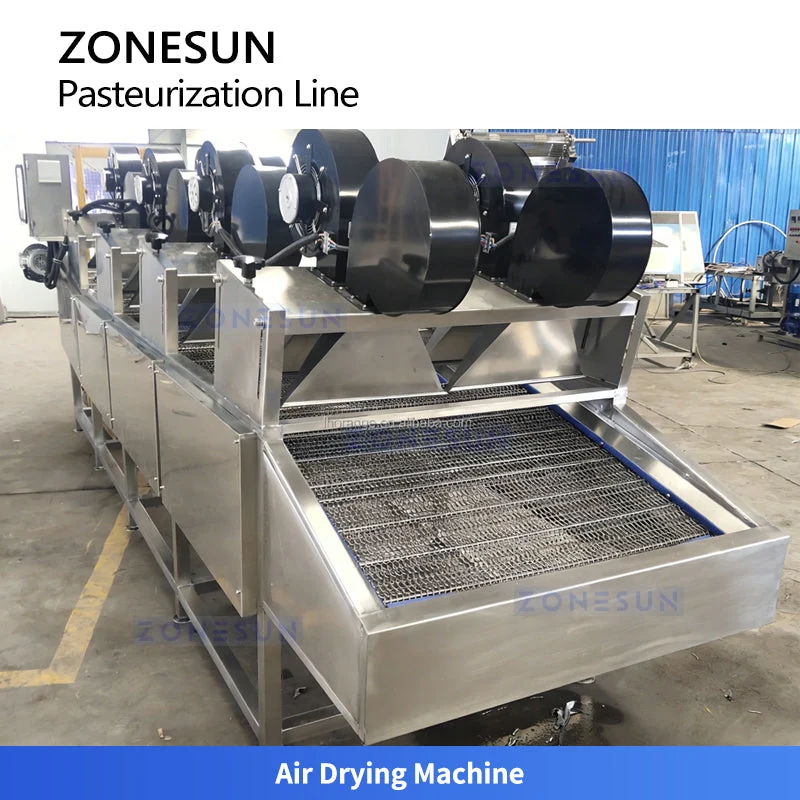

ZS‑PM3C
- Type: Air‑drying machine
- Fans: 6 pcs
- Fan Power: 0.75 kW/each
- Drive Power: 0.55 kW
- Material: Stainless steel
- Machine Size: 3000 × 1100 mm×1400 (customizable)
