Description

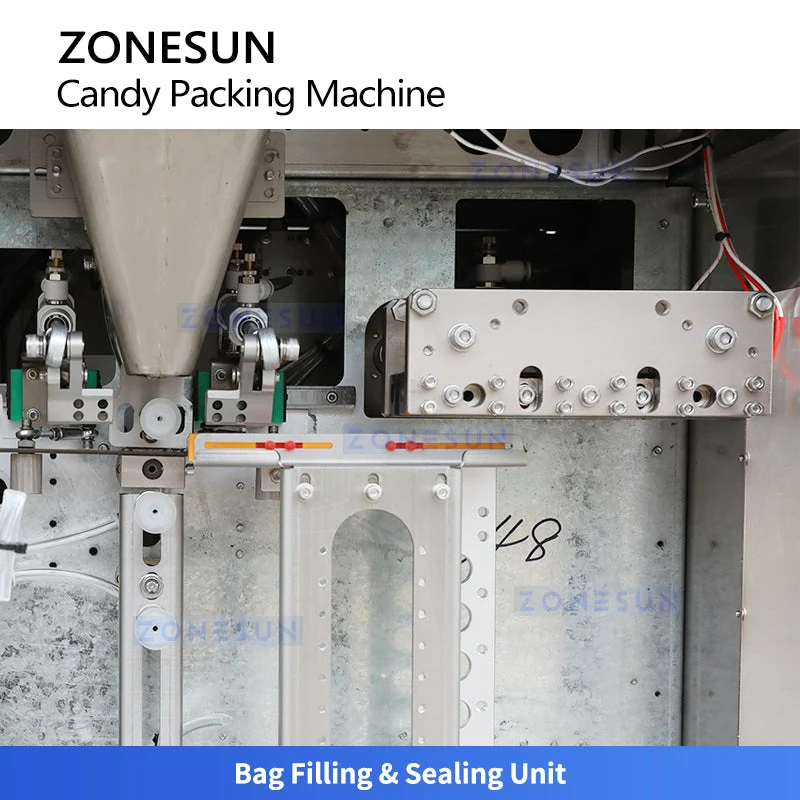

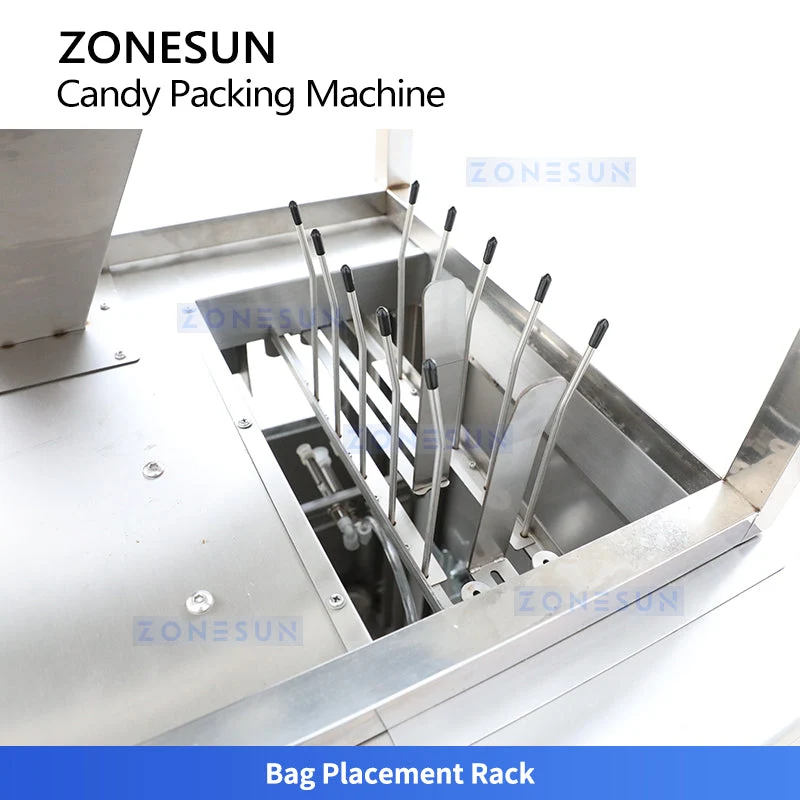

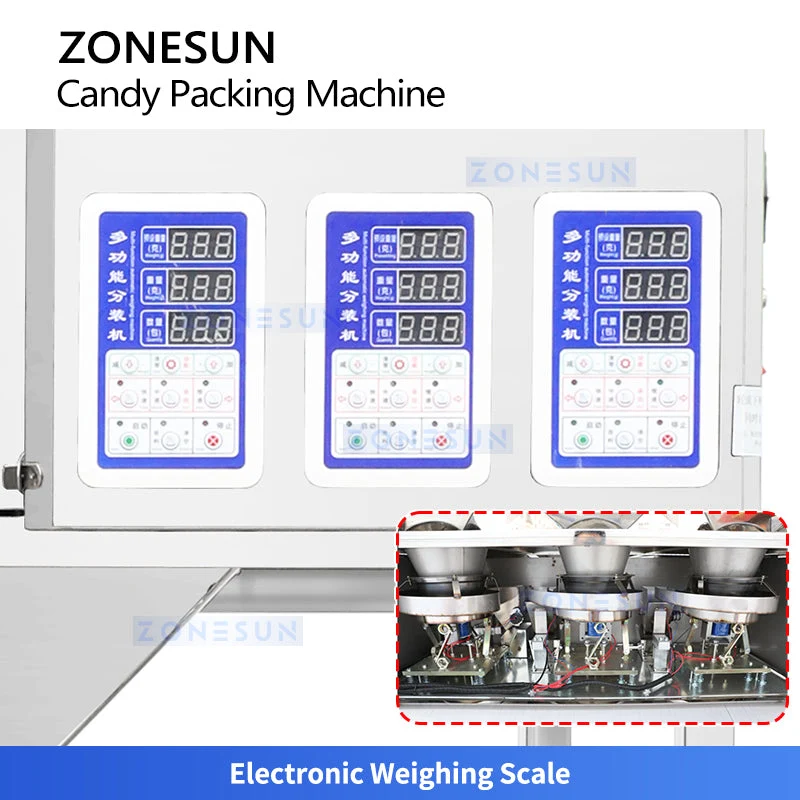

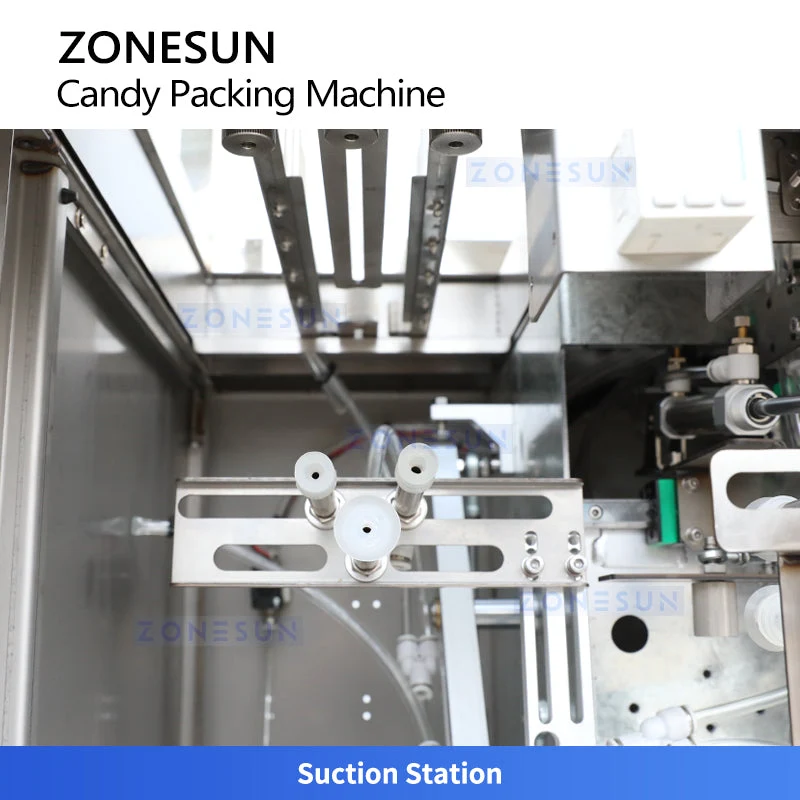

The ZONESUN ZS-AFS04C is an automatic candy weighing, filling, and sealing machine designed for flexible pouch packaging. Operating at 15–25 bags/min, it adopts a split-type structure and is equipped with a three-head electronic weighing scale for precise dosing. Supporting pouch sizes from 5 × 7 cm to 20 × 30 cm, it is compatible with zipper bags, stand-up pouches, and various other bag styles. With its integrated bag placement rack, suction station, filling & sealing unit, and stable hopper feeding system, the machine delivers efficient, accurate, and continuous packaging performance for candy and similar granular products.
Parameter
- Model: ZS‑AFS04C
- Measuring Scope: 1–999
- Packaging Speed: 15–25 bags/min
- Bag Sizes: 5 × 7 cm to 20 × 30 cm
- External Dimension: 991 × 650 × 1650 mm
- Working Air Pressure: 0.6–0.8 MPa / 0.83 m³/min
- Operating Weight: 220 kg
- Total Power: AC 220 V / 0.96 kW
- Packaging Accuracy: ±0.5 g
- Silo Capacity: 50 kg
- Bag Bin Capacity: 450 bags (bag thickness 10 silk)
- Package Size / Weight: 1100 × 750 × 2000 mm / 270 kg
