–ARM32-bit control board

• 32-bit MCU control board, running faster, the maximum no-load speed reaches 40000mm/min, better algorithm optimization, less vibration when the machine moves at high speed, and more stable performance.

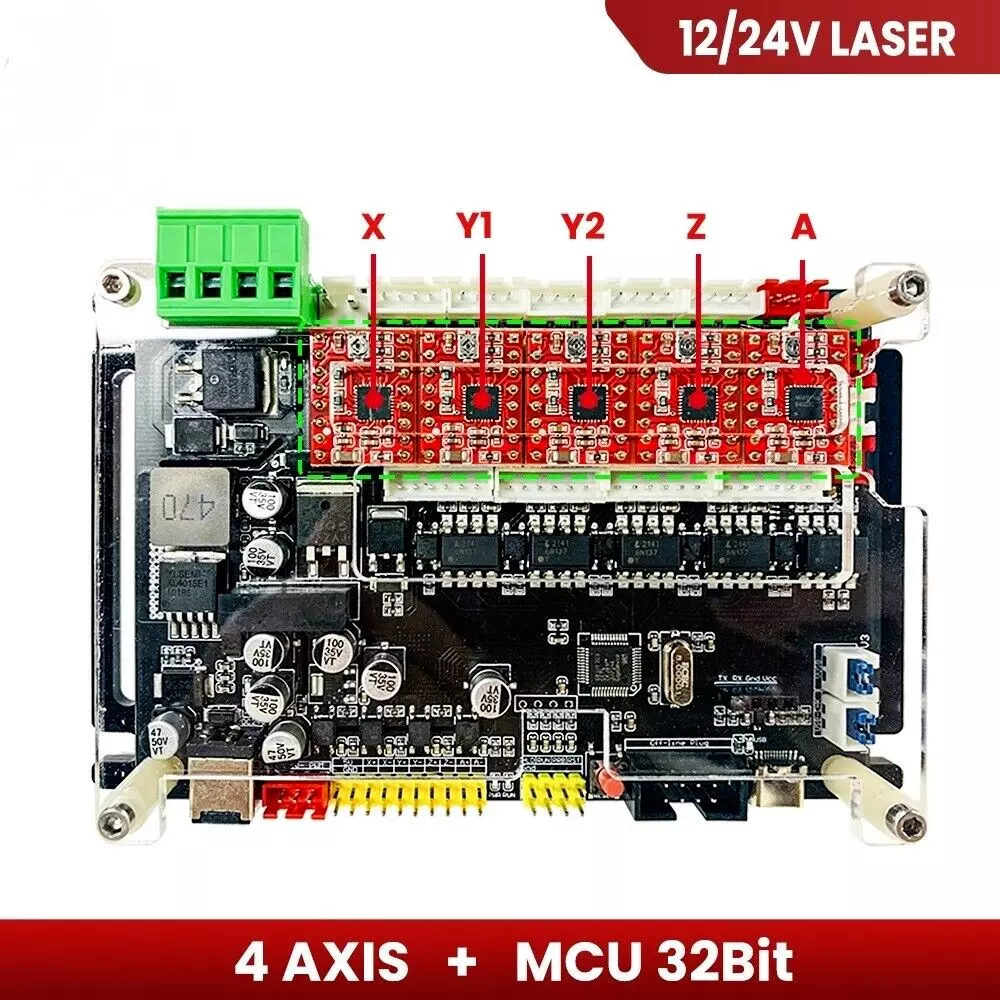

–X/Y/Z/A four-axis drive, Y-axis double drive. Support for rotary axis.

• More powerful driving ability.

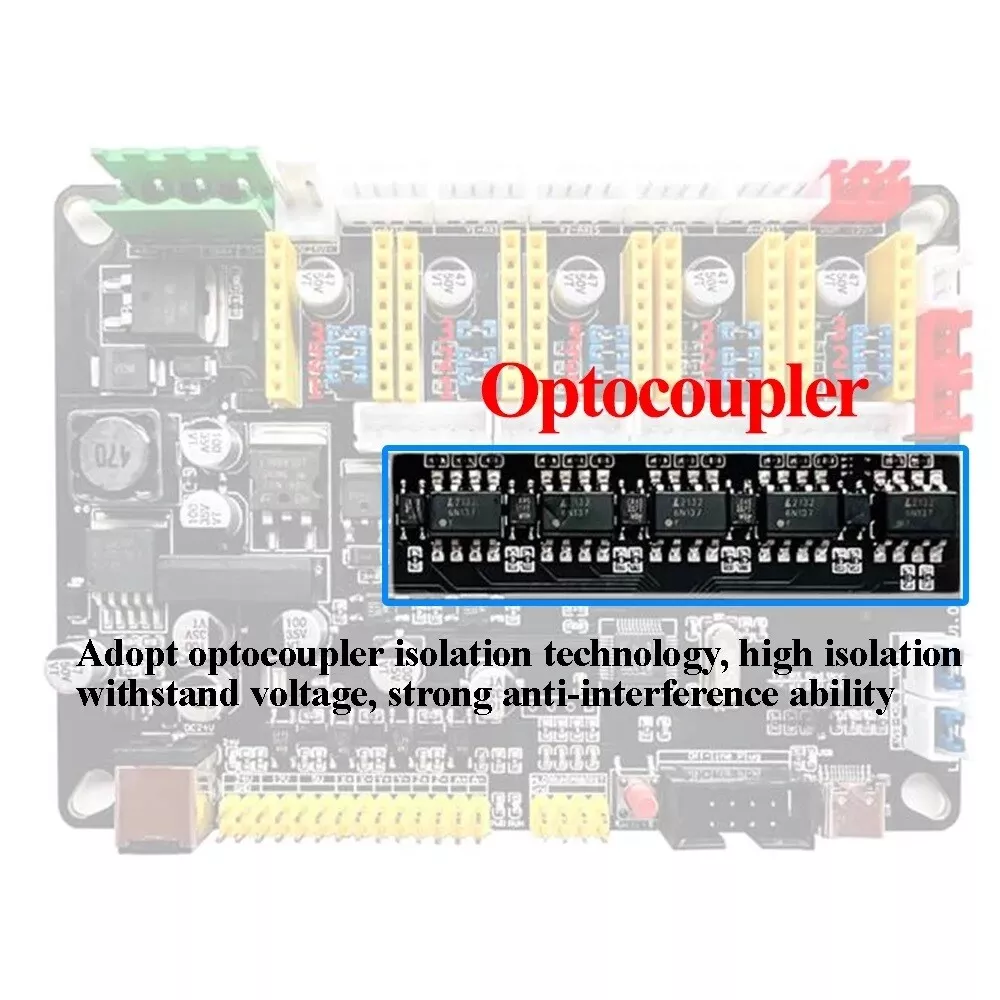

–All signals are isolated by optocoupler, with strong anti-interference ability.

• Optocoupler isolation technology, strong anti-interference ability, more accurate engraving.

–It can be connected to 300W/500W spindle.

• It can be matched with spindles of various powers, with higher adaptability.

–PWM/TTL software to adjust laser power.

• PWM output frequency 10kHz, higher engraving precision and clearer details.

–Split design, control, drive, and expansion boards can be replaced.

• Split design, more convenient to use.

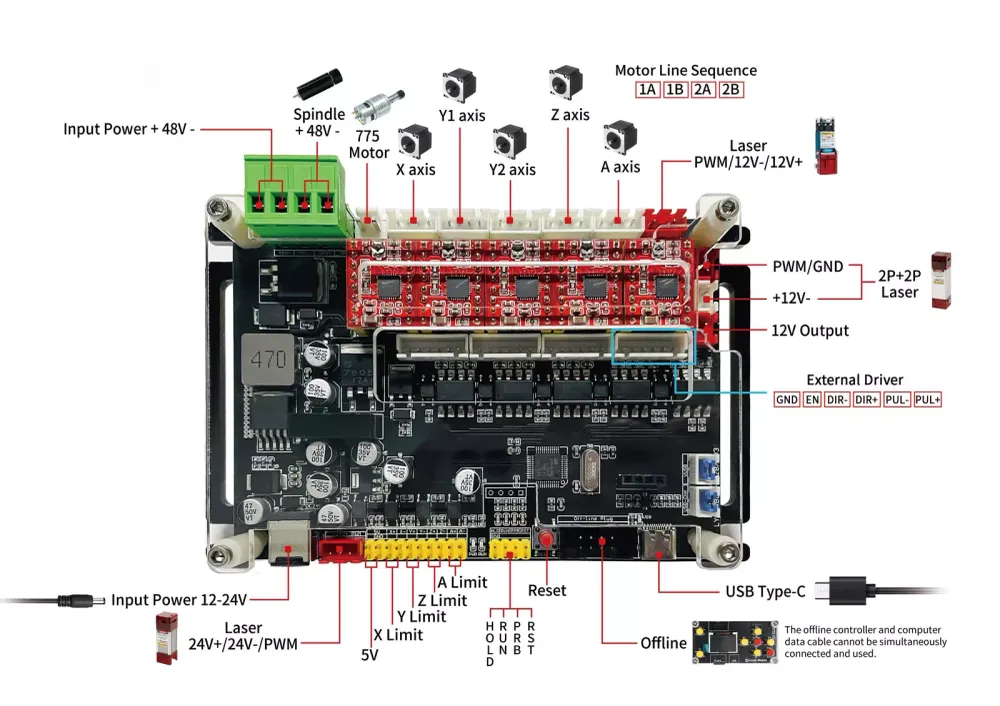

–6-way limit switch, 5V/12V/24V constant voltage pins.

–5V power output port, software controllable, easy to expand various functions.

–It can be connected to a high-power driver.

–The stepper drive subdivision is adjustable, and the machine operates more accurately.

–It can connect 775 motor/3pin laser 4pin laser/offline controller.

–Built-in laser anti-burn mode, laser S value >=100, after the laser is turned on, if there is no movement within 5S, an alarm will occur.

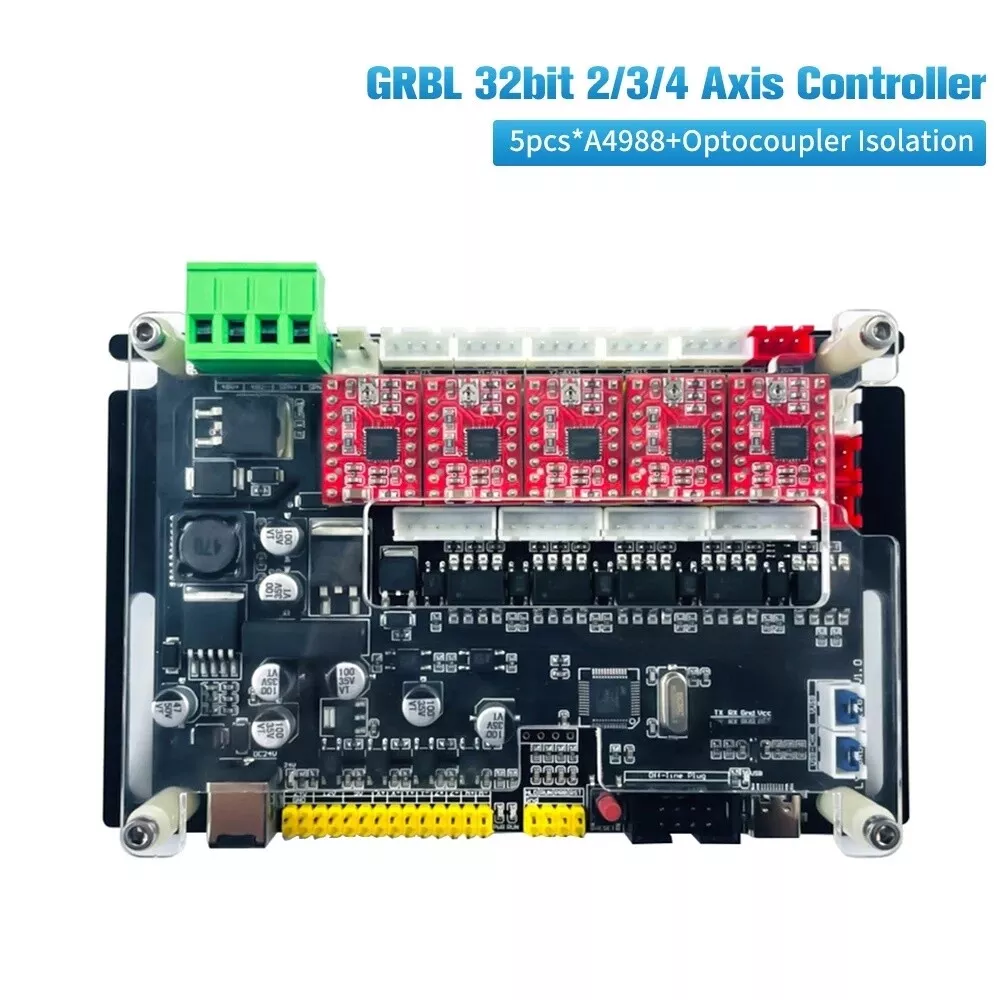

A4988 driver and 8825driver can be replaced with each other

–8825driver , 2A it is better for Nema23 57 Motor

–A4988 driver support most Nema17 motor.

Package Listing：

1* 4axis Controller

1* Type C Cable

1* Motor Cable
